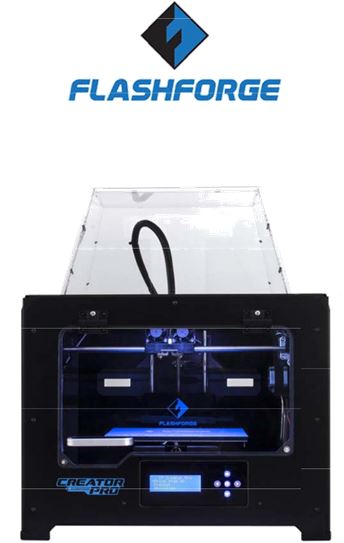

CREATOR PRO

DUAL EXTRUSION 3D PRINTER

FOR ADDITIVE MANUFACTURING

DETAILS

The Creator Pro is the latest addition to FlashForge’s Creator family. Based on proven design of the Creator X chassis, the Pro is now enclosed. So you can inject mould ABS better and more efficient than ever. The upgraded three-point platform leveling system is now more intuitive than ever. And the all-new heat resistant build platform support is now made of highly-durable metal. Guaranteed not to deform means more time extruding and more fun. And a thicker Z-axis rod provides a more steady and precise movement. Every new addition and improvement syncs together in harmony. It simply works.

Key features and improvements:

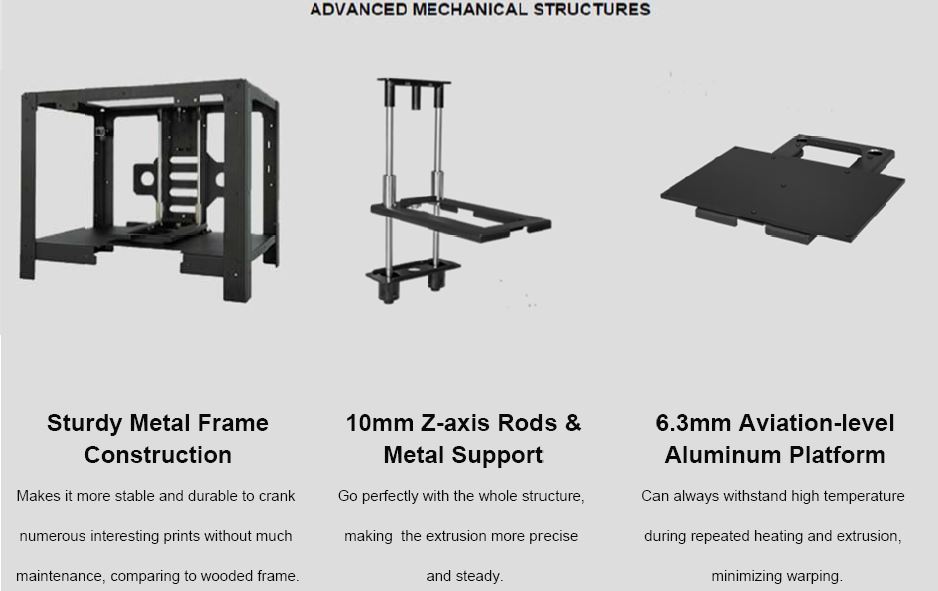

  • Sturdy metal frame is substantially more stable than the Creator's original wood frame.
  • Warp-resistant 6.3mm aluminum build platform remains perfectly level under the stress of high heat.
  • New heat-resistant metal platform supports replace plastic supports.
  • New heavy-duty (10mm) z-axis guide rod ensures steady and precise movement.
  • New acrylic cover encloses the chamber to insulate and protect ABS extrusions.
  • New LED light illuminates the build chamber.
  • New integrated LCD screen and button board functions error-free.

    • Package Contains:

  • FlashForge Creator Pro.
  • 2 spool holders.
  • 2 spools of filament (net weight: 2.2 pounds per spool, material and color randomly selected).
  • 2 filament guide tubes.
  • Accessory bag containing nuts, screws, and hex wrench set.
  • Power supply cable.
  • USB cable.
  • End stop switch cable (spare part).
  • Acrylic covers kit.
  • 4GB SD card (contains software, test sample files and user manual).

    • Dimensions:

  • Overall dimensions: 320 x 467 x 381 mm.
  • Packing dimension: 590 x 470 x 580 mm.

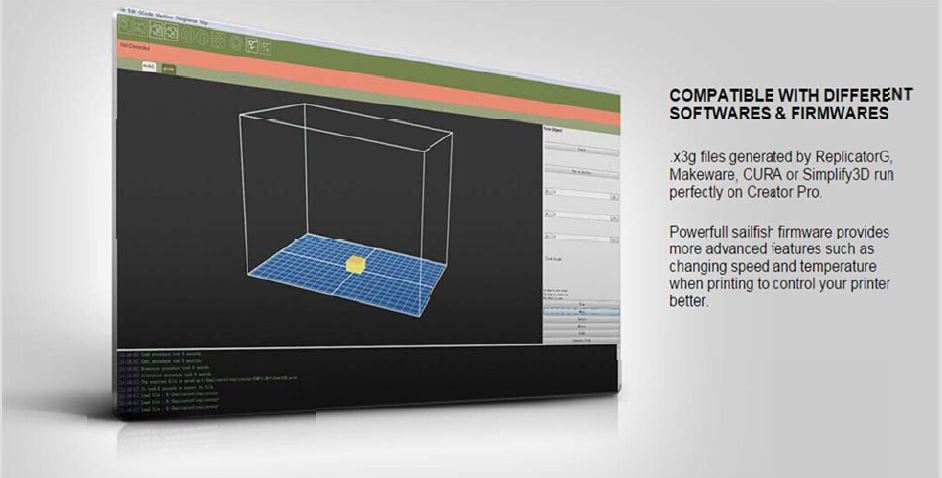

    • Software:

  • ReplicatorG
  • Compatibility: Windows, Mac OS X, and Linux
  • Extrude from SD card or over USB
  • Input file type: STL, gcode

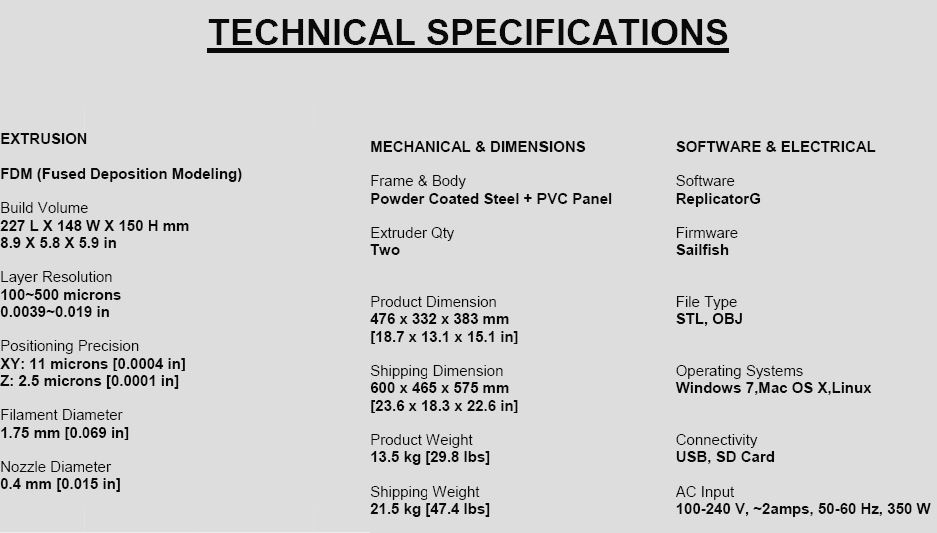

    • Extrusion:

  • Build envelope: 225 x 145 x 150 mm.
  • Build volume: About 5 liters
  • Layer thickness: 0.1-0.3 mm. (adjustable)
  • Nozzle diameter: 0.4 mm.

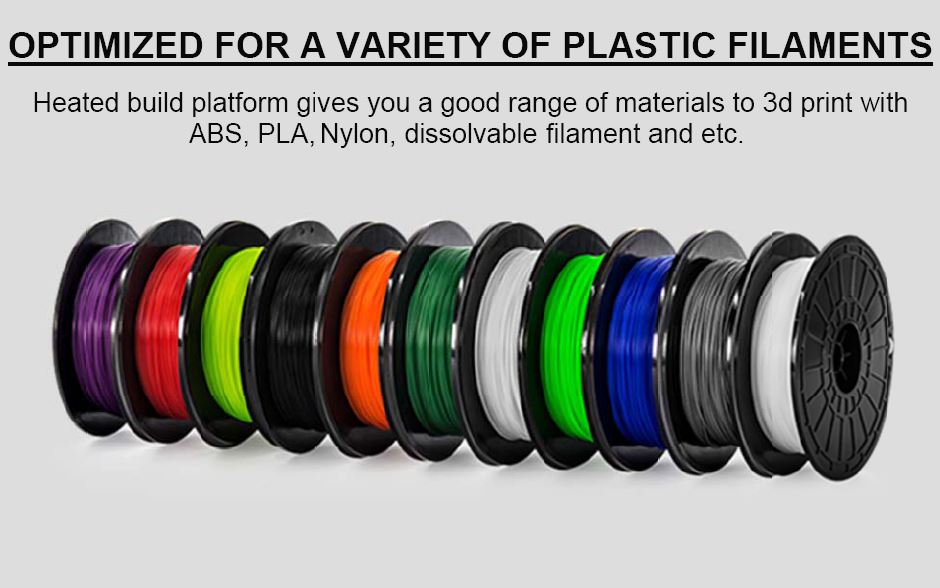

    • Materials:

  • Works well with 1.75 mm ABS and PLA
